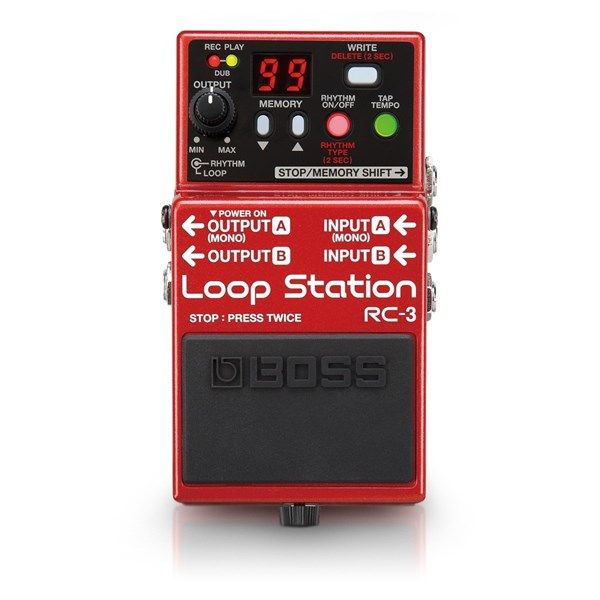

BOSS RC-3 Loop Station

Nominal Input Level

INPUT: -20 dBu

AUX IN: -10 dBu

Input Impedance

INPUT: 1 M ohm

AUX IN: 22 k ohms

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approximately 3 hours

Maximum Phrase Memory: 99 phrases

Number of tracks: 1

Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Rhythm Type

Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion

USB Interface

Hi-Speed USB mass storage device class

Controls

Pedal switch

LOOP OUTPUT knob

RHYTHM OUTPUT knob

DOWN button

UP button

WRITE button

RHYTHM ON/OFF button

TAP TEMPO button

Indicators

REC, PLAY (DUB) indicator

Display

7 segments, 2 characters (LED)

Connectors

INPUT A Jack: 1/4

INPUT B Jack: 1/4

AUX IN Jack: Stereo miniature phone type

OUTPUT A Jack: 1/4

OUTPUT B Jack: 1/4

STOP/MEMORY SHIFT Jack: 1/4

USB Connector

DC IN Jack (DC 9 V)

Power Supply

DC 9 V: Alkaline battery (9 V, 6LR61)

AC Adaptor (PSA series: sold separately)

* Rechargeable Ni-MH batteries cannot be used.

Current Draw

70 mA (DC 9 V)

Expected battery life under continuous use

Alkaline battery (9 V, 6LR61): Approx. 3 hours

These figures will vary depending on the actual conditions of use.

Included Accessories

Owner's Manual

Leaflet (

Alkaline battery (9 V, 6LR61): already installed in unit

Options (sold separately)

AC Adaptor (PSA series)

Footswitch (FS-5U, FS-6)
